5CPL Plus 3in1 palm doppler ultrasound scanner
[pics:title]
[pics:title]
[pics:title]
[pics:title]
[pics:title]
5CPL Plus 3in1 palm doppler ultrasound scanner
[pics:title]
[pics:title]
[pics:title]
[pics:title]
[pics:title]

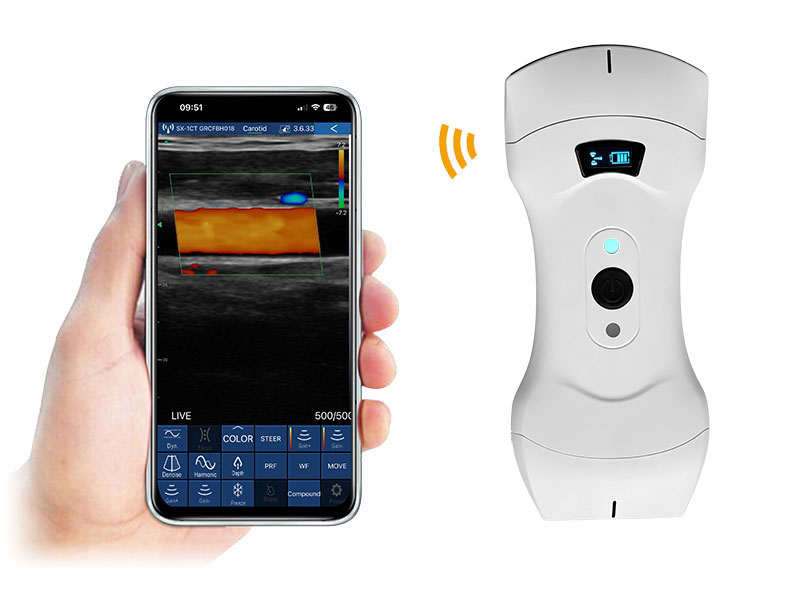

5CPL Plus 3in1 palm doppler ultrasound scanner

SonoStar. Palm Ultrasound, Handle Ultrasound, Mini sono, Mini Ultrasound, Wireless Ultrasound, Portable Ultrasound, Ultrasonic, Color Doppler, USG, Probe Type, Pocket Ultrasound, USB Ultrasond, WirelessSono, PhoneSono, PocketSono, B scanner, Ultrasound Scanner, Veterinary B Scanner, Bladder Scanner, imaging system, diagnosis, Ophthalmic Scanner,无线探头,无线B超,无线超声,无线彩超,掌上超声,掌上B超,掌上彩超,迷你超声,迷你彩超,口袋B超,移动彩超,小型B超,视诊器,探头式B超, 迷你超, 微超, 手超, B超,B超机,超声诊断仪,黑白超,彩超,多普勒,B超厂家,彩超厂家,眼超,膀胱扫描仪
Inquire →






Feature:

• Convex+linear+phased array 3 in 1

• Advanced digital  imaging technology, clear image

• High cost-effective

• Wireless connectivity, wireless charging, easy to operate

• Small and light,easy to carry

• Applicable in emergency, clinic, outdoor and vet inspection

• Intelligent terminal platform, powerful expansion functions on application, storage, communication, printing

• Free software, no didden fees, and unlimited users

• Different APP for IOS/Android/Windows system

• APP with Chinese, English, Italy, Spain, Russian, German,Portuguese(Brazil)



Specifications:

• Frequency: Convex 2MHz/5MHz, Phasedarray probe 2MHz/5MHz, Linear probe 5MHz/12MHz

• Elements: 192

• Channels: 32

• Display Depth: Convex 90/160/220/305mm, Phasedarray90/120/140/160, Linear 20/40/60/80mm

• Scan angle and width: convex 60°, Phasedarray 80°,  linear 40mm

• Image Adjust: Gain, DYN, Focus, Depth, Harmonic, Denoise

• Puncture assist function: the function of in-plane puncture guide line,

  out-of-plane puncture guide line, automatic blood vessel measurement,

  and the enhancement function of needle point development.

• Noise reduction: 0-1-2-3-4

• Gain: 30db-105db

• Dynamic Range: 40/50/60/70/80/90/100/110

• Cineplay: auto and manual, frames can set as 100/200/500/1000

• Measure: Length, Area, Angle, Obstetrics

• Battery working time: 3 hours

• Charge: by wireless charger, 2 hours

• Dimension: 156×60×20mm

• Weight: 230g

• Wifi type: 802.11g/20MHz/5G/450Mbps

• Working system: Apple iOS and Android, Windows



Configuration:

Standard Configuration：Wireless Probe Type Ultrasound Scanner x 1 unit, USB Charging Cable x 1pc

Optional：Carrying Bag, Aluminium Suitcase, Stainless Steel Puncture Guide, Wireless Power Bank, Android or iOS Phone/Tablet, Tablet Bracket, Trolley
